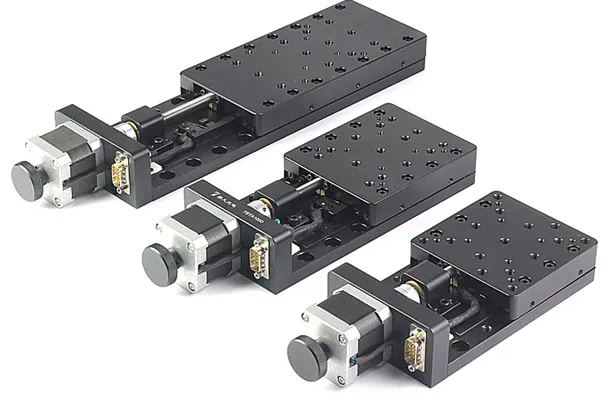

| Model | |||
| Travel（mm） | 30 | 50 | 100 |
| Screw lead (mm) | 1 | ||
| Resolution (at 8 microsteps) (mm） | 0.000625 | ||
| Maximum speed（at 2 microsteps）（mm/s） | 10 | ||
| Repeatability（mm） | 0.005 | ||
| Backlash (mm) | 0.02 | ||
| Motor type | 42 stepper motor (1.8°) | ||
| Maximum static torque（N·m） | 0.4 | ||
| Rated working current（A） | 1.7 | ||
| Central load（kg） | 10 | ||
| Weight（kg） | 1.3 | 1.5 | 2.1 |
