Manual Multi-Axis Stage

Manual Multi-Axis Stage

Manual positioning stage

The manual multi-axis stage features a compact design, enabling two to five-axis displacement adjustments within a small space. Its axis displacement adjustments are symmetrically designed for left and right-hand operation pairs, with the load surface positioned on the same horizontal plane for convenient operation and adjustment.

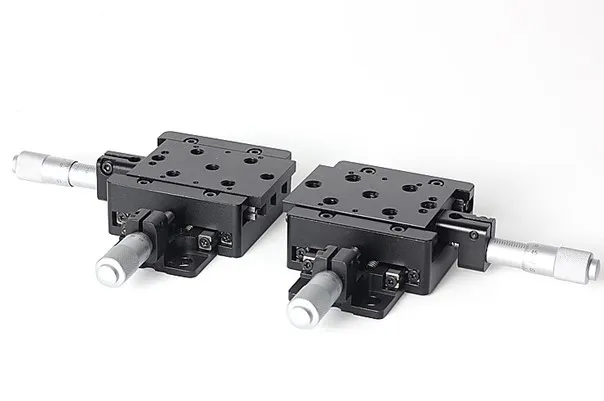

7SWM01213/7SWM01113 Series Two-Axis Translation Stages (travel: 13mm)
7SWM01213/7SWM01113 Series Two-Axis Translation Stages (travel: 13mm)
Request a Quote
Features
  • The compact structure design allows for precise two-axis translation adjustments in confined spaces while maintaining high orthogonality accuracy.
  • The combination of precision steel ball bearings and ground steel rods ensures smooth movement, high accuracy, and minimal friction.
  • The micrometer-driven mechanism provides quantitative readings with a spring reset system, which effectively eliminates backlash and enhances positioning precision.
  • Both micrometers are positioned on the same horizontal plane, making manual adjustments easier and more convenient for the user.
Specifications
Model 7SWM01213/7SWM01113
Travel 13mm
Minimum graduation 0.01mm
Resolution 0.002mm
Yaw angle 30"
Load 2.5kg
Weight 0.4kg
7SWM02113/7SWM02213 Series Two-Axis Translation Stage (travel: 13mm)
7SWM02113/7SWM02213 Series Two-Axis Translation Stage (travel: 13mm)
Request a Quote
Features
  • Its compact structure design facilitates precise two-axis translation adjustments in confined spaces while maintaining high orthogonality accuracy.
  • A cross-roller guide system ensures smooth motion, high precision, and increased load capacity, making it ideal for demanding applications.
  • The micrometer-driven mechanism provides quantitative readings with a spring reset, eliminating backlash and improving positioning accuracy.
  • Both micrometers are positioned on the same horizontal plane, enabling comfortable and precise manual adjustments.
Specifications
Model 7SWM02113/7SWM02213
Travel 13mm
Minimum graduation 0.01mm
Resolution 0.002mm
Yaw angle 30"
Load 4kg
Weight 0.5kg
7SWM02125/7SWM02225 Series Two-Axis Translation Stage (Travel: 25 mm)
7SWM02125/7SWM02225 Series Two-Axis Translation Stage (Travel: 25 mm)
Request a Quote
Features
  • Designed for compact spaces, this stage enables precise two-axis translation adjustments while maintaining high orthogonality accuracy.
  • A cross-roller guide system enhances rigidity, ensures smooth motion, and supports high load capacities, making it ideal for demanding applications.
  • Equipped with a micrometer-driven mechanism, it provides quantitative readings with a spring reset, effectively eliminating backlash and improving positioning accuracy.
  • Both micrometers are positioned on the same horizontal plane, allowing for comfortable and precise manual adjustments.
Specifications
Model 7SWM02125/7SWM02225
Travel 25mm
Minimum graduation 0.01mm
Resolution 0.002mm
Yaw angle 30"
Load 4kg
Weight 0.6kg

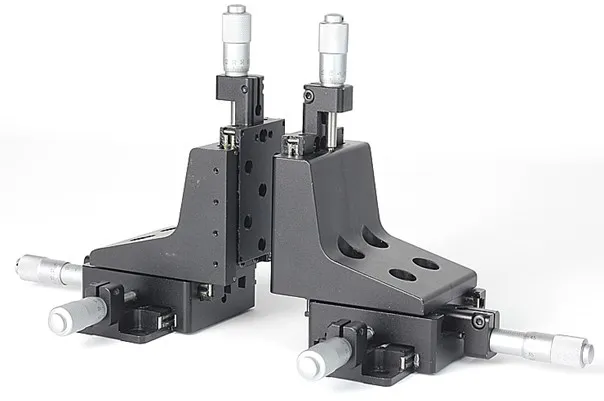

7SWM03113/7SWM03213 Series 3-Axis Translation Stage (Travel: 13 mm)
7SWM03113/7SWM03213 Series 3-Axis Translation Stage (Travel: 13 mm)
Request a Quote
Features
  • Designed for three-axis translation, this stage provides precise movement and maintains high orthogonality accuracy in compact setups.
  • Cross roller bearings ensure smooth travel, high rigidity, and the ability to support substantial loads.
  • Micrometer-driven positioning enables fine adjustments with spring reset functionality, eliminating backlash for consistent accuracy.
  • An ergonomic layout places both micrometers on the same horizontal plane, simplifying manual control and improving usability.
  • A rigid lifting mechanism enhances load capacity and stability, outperforming traditional spring-based lifting systems.
  • Compatible with 7MFP02 series two-dimensional tilt mounts, making it well-suited for precise optical fiber alignment and other delicate adjustments.
Specifications
Model 7SWM03113/7SWM03213
Travel 13mm
Minimum graduation 0.01mm
Resolution 0.002mm
Yaw angle 30"
Load 2.5kg
Weight 0.9kg

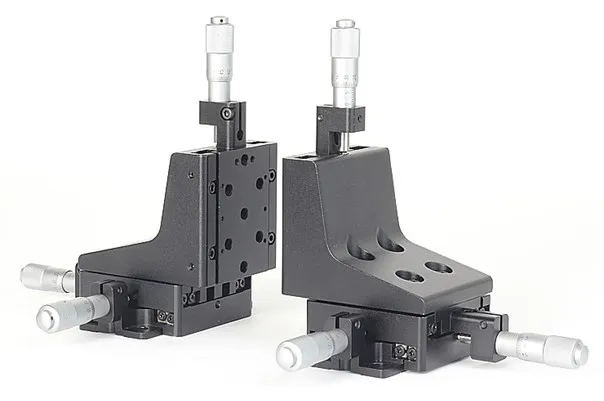

7SWM04113/7SWM04213 3-Axis Translation Stage (Travel: 13mm)
7SWM04113/7SWM04213 3-Axis Translation Stage (Travel: 13mm)
Request a Quote
Features
  • Engineered for three-axis translation, this stage ensures precise movement while maintaining high orthogonality accuracy in compact applications.
  • Fitted with cross roller bearings that provide smooth motion, enhanced rigidity, and strong load-bearing capacity, making it suitable for high-precision adjustments.
  • Micrometer-driven positioning allows for accurate, incremental movements, while the spring reset mechanism effectively eliminates backlash.
  • An intuitive design places both micrometers on the same horizontal plane, making manual operation more accessible and efficient.
Specifications
Model 7SWM04113/7SWM04213
Travel 13mm
Minimum graduation 0.01mm
Resolution 0.002mm
Yaw angle 30"
Load 4kg
Weight 1kg

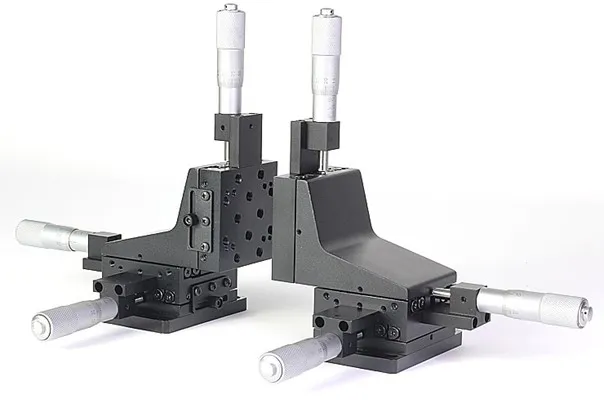

7SWM04125/7SWM04225 Series Three-Axis Translation Stage (Travel: 25 mm)
7SWM04125/7SWM04225 Series Three-Axis Translation Stage (Travel: 25 mm)
Request a Quote
Features
  • Designed for three-axis translation, this stage provides precise adjustments while maintaining orthogonality in compact spaces.
  • Cross roller bearings enhance stability, offering smooth motion, high precision, and strong load capacity for demanding applications.
  • A micrometer-driven system ensures accurate positioning, while the spring reset mechanism effectively eliminates backlash.
  • The ergonomic design places both micrometers on the same horizontal plane, allowing for comfortable and intuitive manual operation.
Specifications
Model 7SWM04125/7SWM04225
Travel 25mm
Minimum graduation 0.01mm
Resolution 0.002mm
Yaw angle 30"
Load 4kg
Weight 1.2kg

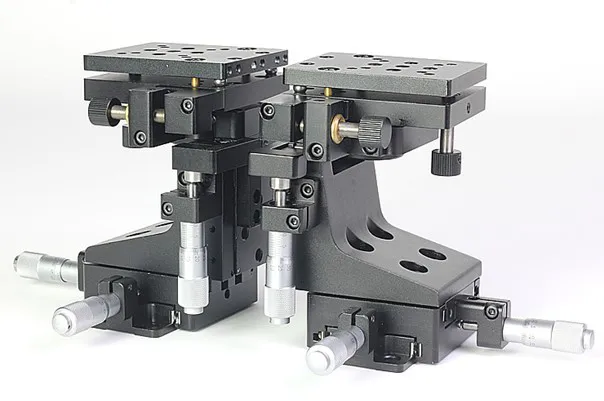

7SWM0501/7SWM0502 Five-Axis Translation Stage (Travel: 13 mm)
7SWM0501/7SWM0502 Five-Axis Translation Stage (Travel: 13 mm)
Request a Quote
Features
  • Designed for multi-degree-of-freedom adjustments, this stage enables precise movement in three linear axes along with pitch and rotation control.
  • High-precision steel ball bearings and ground steel rods ensure smooth motion, excellent accuracy, and reliable performance.
  • Micrometer-driven translation system provides precise positioning with quantitative readings, while the spring reset mechanism eliminates backlash for greater stability.
  • Pitch and rotation adjustments utilize an M6×0.25 fine-thread screw, combined with a high-quality disc spring reset, ensuring firm and stable positioning.
  • Both micrometers are positioned on the same horizontal plane, allowing for comfortable manual operation and intuitive control.
  • A rigid vertical lifting mechanism significantly increases load capacity compared to spring-based lifting systems, enhancing stability and durability.
Specifications
Model 7SWM0501/7SWM0502
Travel 13mm
Pitch and rotation range ±5°
Minimum graduation 0.01mm
Resolution 0.002mm
Yaw angle 30"
Load 2.5kg
Weight 1.15kg
