Optical measurement systems for solar cell testing and optoelectronics testing

Opto-Mechanics

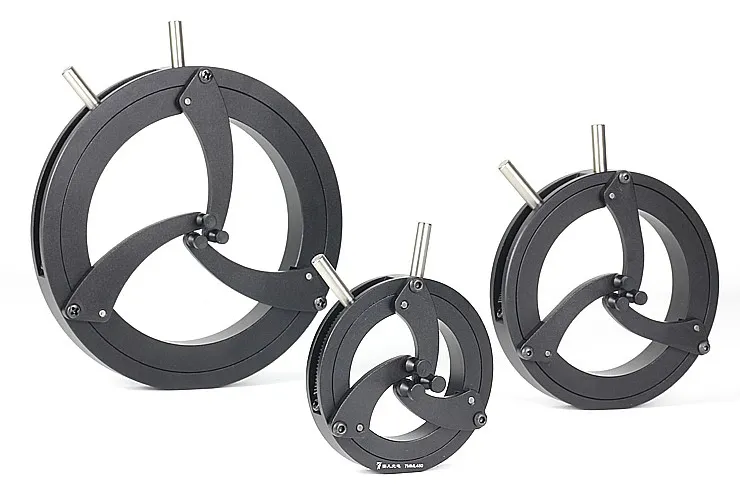

7MML4 Self-Centering Mirror Mount
Request a Quote
7MML4

Self-Centering Mirror Mount

Features
  • Features three support arms that open and close simultaneously for secure and balanced lens handling.
  • Accommodates lenses of various diameters, providing versatility for different applications.
  • Maintains the center position of the lens during replacement, ensuring consistent alignment.
  • Equipped with a spring-reset mechanism, ideal for lightweight lenses, offering smooth and stable operation.

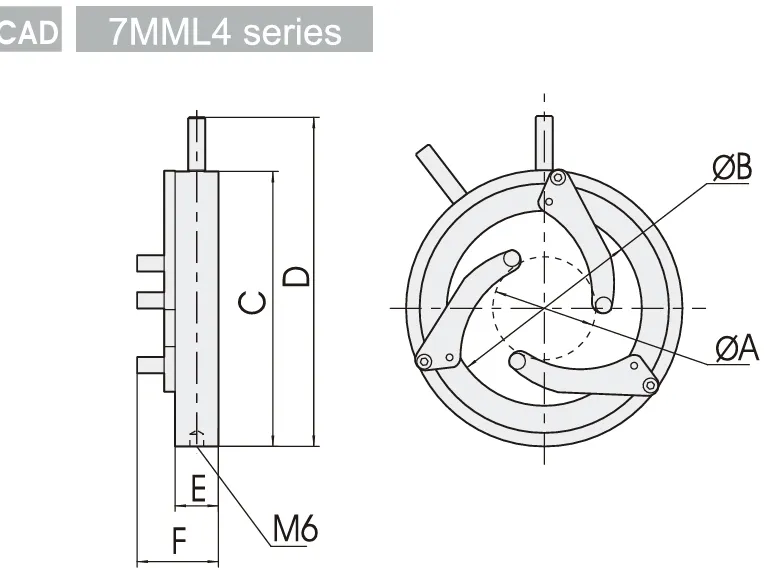

Specifications
Model Diameter of lens A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) Weight (g)
Max. Min.
7MML450 50 5 46 70 90 11 19 85
7MML476 76 5 72 102 126 16 30 192
7MML4102 102 5 100 140 160 16 30 340
7MML4 Self-Centering Mirror Mount
