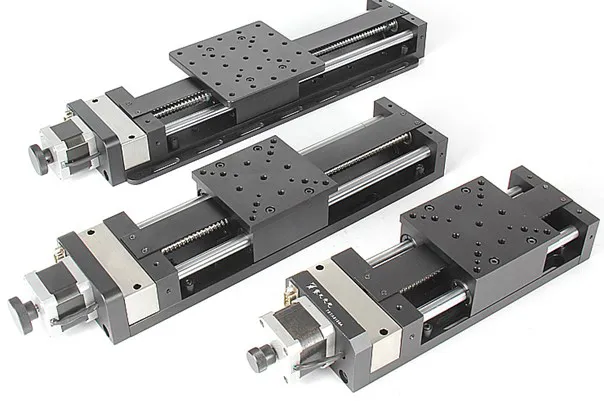

7STA01B Motorized Translation Stages

Request a Quote

Features

Integrated with a stepper motor and a DB9 standard plug, compatible with 7SC series motion controllers for automated operation.
Driven by a high-quality ball screw, ensuring smooth motion, high repeatability, and extended lifespan.
The three-bearing mounting structure secures the screw rod at both ends, preventing loosening and making it ideal for high-speed reciprocating motion.
Equipped with a precision linear bearing guide rail, providing stable movement. The middle support minimizes load capacity, making it suitable for single-axis or vertical applications.
Features a high-performance elastic coupling between the motor and ball screw, enabling synchronized transmission with minimal noise.

Specifications

Model	7STA01508	7STA01100B	7STA01150B	7STA01200B	7STA01300B
Travel（mm）	50	100	150	200	300
Table size（L*W）(mm)	90×90			120×120
Screw Lead (mm)	4
Resolution (at 8 microsteps) （mm）	0.00125			0.0025
Maximum speed (at 2 Microsteps)（mm/s）	20			40
Repeatability(mm)	0.005
Backlash (mm)	0.03
Motor type	42 mm Stepper motor (0.9°)			42 mm Stepper motor (1.8°)
Maximum static torque（N·m）	0.4
Rated working current（A）	1.7A
Central load（kg）	15		10	7	5
Weight（kg）	2.75	3	3.3	3.8	4
