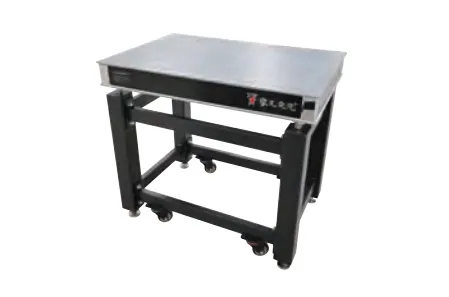

Damped Optical Isolation Platform

Features
  • Built with a composite material base that provides solid damping isolation for reduced vibrations.
  • Designed with a stable and reliable structure, ensuring consistent performance.
  • Ideal for high-precision experiments and controlled laboratory environments.
Specifications
  • Surface Roughness: 0.8-1.6μm
  • Flatness: 0.05mm/m²
  • Maximum Vibration amplitude: 5μm
  • Natural frequency: 4-6Hz
Model Size (mm) Support Thickness (mm) Screw hole/array distance (mm)
7TBP15-10 1500×1000×800 4 150 M6/25
7TBP16-09 1600×900×800 4 150 M6/25
7TBP18-12 1800×1200×800 4 150 M6/25
7TBP20-10 2000×1000×800 4 200 M6/25
7TBP20-12 2000×1200×800 4 200 M6/25
7TBP24-12 2400×1200×800 4 250 M6/25
7TBP30-10 3000×1000×800 6 250 M6/50
7TBP30-12 3000×1200×800 6 250 M6/50
7TBP30-15 3000×1500×800 6 250 M6/50
7TBP35-12 3500×1200×800 6 300 M6/50
7TBP35-15 3500×1500×800 6 300 M6/50
7TBP40-15 4000×1500×800 6 300 M6/100
7TBP42-15 4200×1500×800 6 300 M6/100
7TBP48-15 4800×1500×800 8 300 M6/100
7TBP54-15 5400×1500×800 8 300 M6/100
7TBP60-15 6000×1500×800 8 300 M6/100
