Precision Rotary Stage

The manual rotary stage features a precision rotary shaft system design, providing high accuracy and stability. The platform can rotate 360° and is equipped with coarse and fine adjustment, as well as worm gear adjustments. The platform diameter ranges from 29 to 100mm, and hollow-structured rotary stages are available for light transmission or connecting to other products.

7SRM156 Precision Rotary Stage

• Rotary table diameter: Ø56mm
• Coarse adjustment range: 360°
• Fine adjustment range: ±3°
• Minimum graduation: 2°
• Minimum reading: 0.2°
• Load: 2kg
• Weight: 0.15kg

7SRM173 Precision Rotary Stage

• Rotary table diameter: Ø73mm
• Coarse adjustment range: 360°
• Fine adjustment range: ±2.5°
• Minimum graduation: 1°
• Minimum reading: 5°
• Load: 5kg
• Weight: 0.35kg

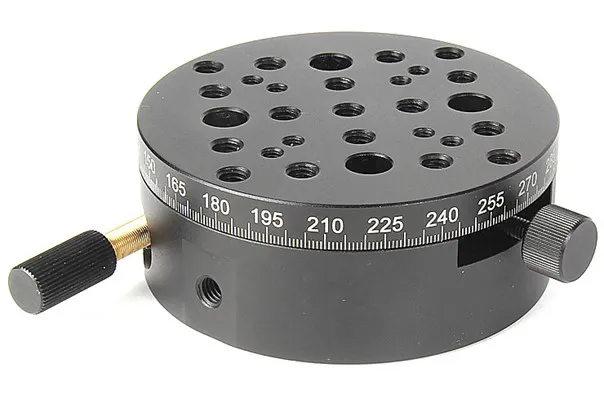

7SRM182/7SRM182L Precision Rotary Stage

• Rotary table diameter: Ø82mm
• Coarse adjustment range: 360°
• Fine adjustment range: ±10°
• Minimum graduation: 1°
• Minimum reading: 2°
• Load: 5kg
• Weight: 0.5kg

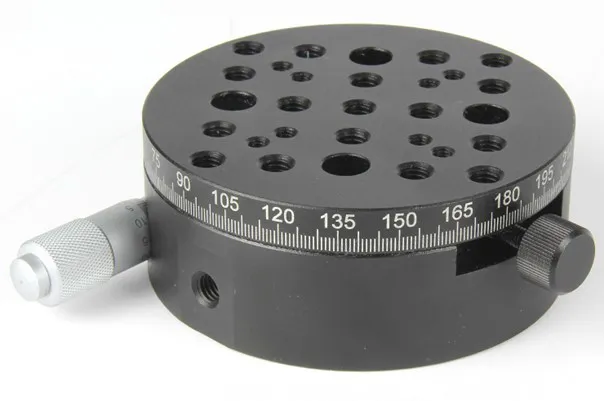

7SRM282/7SRM282L Precision Rotary Stage

• Rotary table diameter: Ø82mm
• Coarse adjustment range: 360°
• Fine adjustment range: ±10°
• Minimum graduation: 1°
• Minimum reading: 2°
• Minimum reading of the micrometer: 0.01mm
• Load: 5kg
• Weight: 0.5kg

7SRM329 Precision Rotary Stage

• Rotary table diameter: Ø29mm
• Adjustment range: 360°
• Minimum graduation: 5°
• Sensitivity: 0.5°
• Central hole: M14x1, for 0.5 inch lens
• Weight: 0.15kg

7SRM3100 Precision Rotary Stage

• Rotary table diameter: Ø100mm
• Range of adjustment: 360°
• Minimum graduation: 2°
• Minimum reading: 0.2°
• Sensitivity: 1°
• Load: 15kg
• Weight: 0.5kg

7SRM490 Precision Rotary Stage

• Rotary table diameter: Ø90mm
• Adjustment range: 360°
• Minimum graduation: 1°
• Minimum reading: 2°
• Weight: 0.35kg
