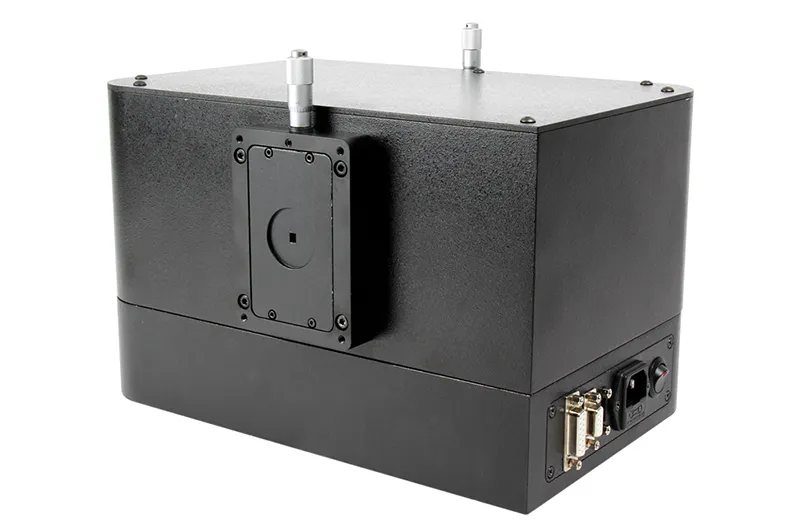

7ISW15 Series Double-Grating Scanning Monochromator/Spectrometer (patent)
Request a Quote
7ISW15 Series Double-Grating Scanning Monochromator/Spectrometer (patent)
Features
  • Asymmetrical Czerny-Turner optical path design, eliminating aberrations, which can improve spectral line symmetry and enhance optical resolution.
  • Second dispersion removal design effectively reduces stray light.
  • Flexible configuration allows for the use of multiple gratings according to specific demands.
  • The monochromator is equipped with RS232 and USB interfaces. Through computer control, grating conversion, filter replacement, and wavelength scanning can be achieved, enabling fully automatic wide spectrum testing. USB support allows for hot plug, offering plug-and-play convenience and fast transmission rates.
  • The entrance port can be used with various light sources produced by our company and can be equipped with a fiber optic entrance connector.
  • It can be connected to any single-point detector and other accessories manufactured by our company. It can also be connected to line arrays and array detectors for spectrograph use.
Specifications
Focal length 150mm
Aperture ratio (F/#) F/4.5
Stray light suppression 5×10-4
Minimum step size 0.0045nm
Grating type Grating S30×30×6
Grating size 30mm×30mm
Standard double gratings 7OG1200-300 (1200g/mm, λp=300nm)
7OG600-1000 (600g/mm, λp=1000nm)
Slit size Cutting edge 10μm automatic protection, width 10μm-3 mm adjustable, high 5mm
Dimension (L×W×H) 298mm×200mm×185mm
Center height of optical path 140mm (±5mm adjustable )
Weight 10kg

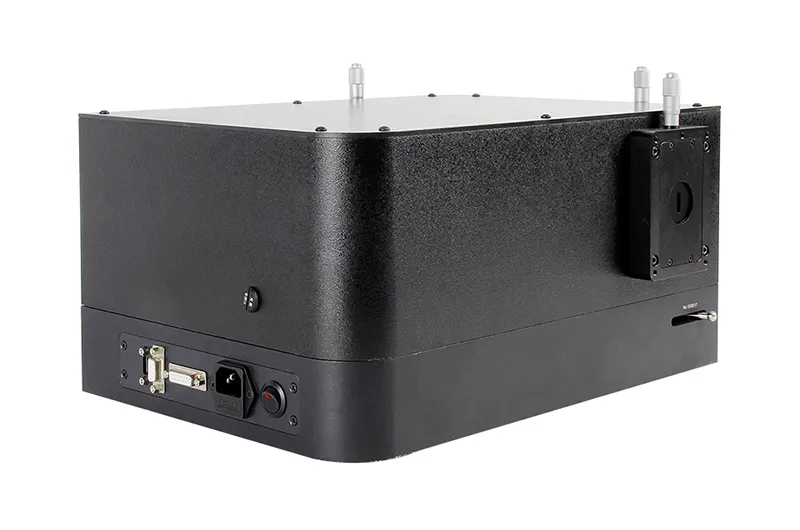

7ISW30 Series Triple-Grating Scanning Monochromator/Spectrometer (patent)
Request a Quote
7ISW30 Series Triple-Grating Scanning Monochromator/Spectrometer (patent)
Features
  • The 7ISW30/7ISW50 series spectrometer offers two positions for the light exit port, allowing for the installation of a CCD.
  • It features precision worm gear transmission, ensuring accuracy, high repeatability, low noise, and a long service life.
  • The spectrometer incorporates a unique slit design with automatic edge protection, symmetric width adjustment, and a long service life.
  • Equipped with a special nitrogen filling interface, it facilitates convenient usage within the ultraviolet and near-infrared ranges with atmospheric absorption bands.
  • Constructed with fine materials and employing perfect processes, it ensures production of high-quality instruments with excellent performance and batch consistency.
  • The spectrometer strictly separates the optical chamber and mechanical chamber to prevent stray light and pollution of optical parts due to traces of lubricating oil.
  • Its body is made with a casting structure, ensuring the stability of the optical system.
Specifications
Focal length 300mm
Aperture ratio (F/#) F/4.8
Stray light suppression 5×10-4
Minimum step size 0.0023nm
Grating type Grating S55x55x6
Grating size 55mm×55mm
Standard triple gratings 7OG1200-300 (1200g/mm, λp=300nm)
7OG600-750 (600g/mm, λp=750nm)
7OG300-1250 (300g/mm, λp=1250nm)
Slit size Cutting edge10μm automatic protection, width 10μm-3mm adjustable, high14mm
Dimension (L×W×H) 390mm×278mm×204mm
Weight 16kg

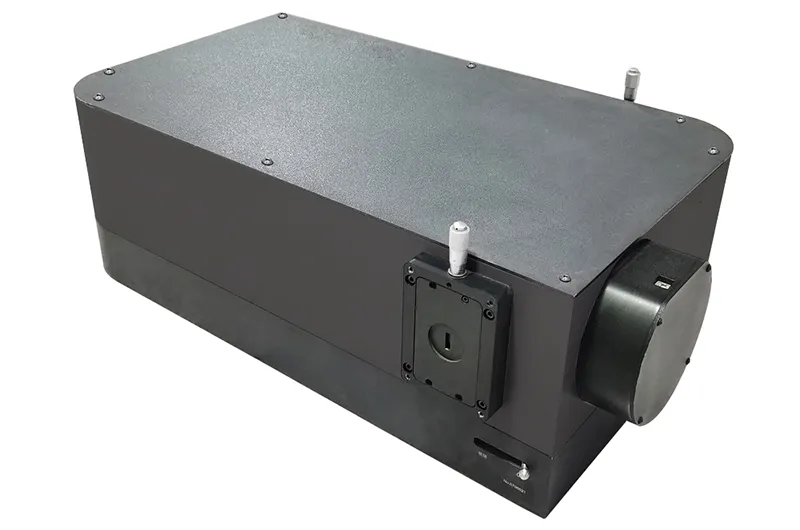

7ISW50 Series Triple-Grating Scanning Monochromator / Spectrometer (patent)
Request a Quote
7ISW50 Series Triple-Grating Scanning Monochromator / Spectrometer (patent)
Specifications
Focal length 500mm
Aperture ratio (F/#) F/8
Stray light suppression 5×10-4
Minimum step size 0.0023nm
Grating type Grating S55x55x6
Grating size 55mm×55mm
Standard triple gratings 7OG1200-300 (1200g/mm, λp=300nm)
7OG600-750 (600g/mm, λp=750nm)
7OG300-1250 (300g/mm, λp=1250nm)
Slit size Cutting edge10μm automatic protection, width 10μm-3mm adjustable, high 14mm
Dimension (L×W×H) 560mm×320mm×204mm
Weight 22kg
