7-PMA160

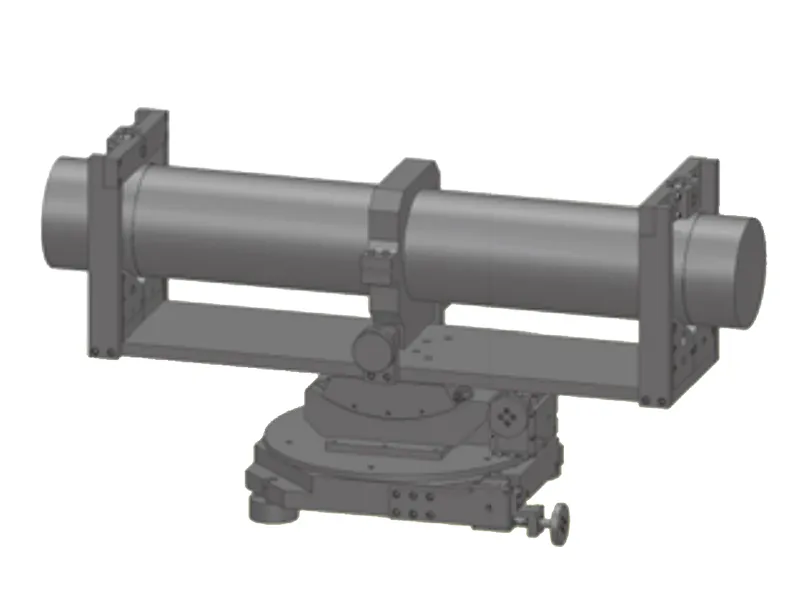

Collimator Adjustment System

Integrated multi-axis positioning system
  • Diameter of clamp: 160mm
  • Total height: 521mm
  • TZ Rotation adjustment range: 360°
  • TY Pitch adjustment range: ±5°
  • TX Rotation adjustment range: ±6°
Features
  • Achieves precise adjustments in two dimensions for rotation and one dimension for pitch.
  • TZ rotation and TY pitch adjustment

    Incorporates a worm and wormwheel rotating mechanism for TZ rotation and TY pitch adjustments. Features a manual rotary table as a fine adjustment handwheel, providing a resolution of less than 1 micron.

  • TX·Rotation

    equipped with a collimator holder featuring fine adjustment, ensuring a firm and secure clamp.
