Motorized Tilt Platform

Motorized Tilt Platform

Motorized tilt stage

The motorized tilt platform is driven by a stepper motor to achieve automated dual-axis tilt adjustments.

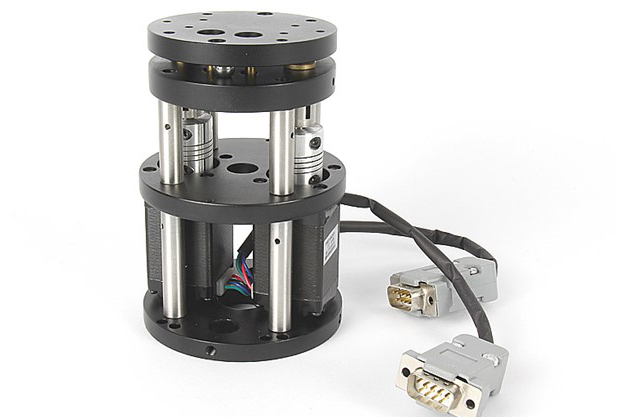

7SIA0205 motorized tilt platform
7SIA0205 motorized tilt platform
  • Table diameter: Ø70mm
  • Adjustment range: θx: ±5° θy: ±5°
  • Standard motor: 28 stepping motor (1.8°)
  • Maximum static torque: 0.06N·m
  • Rated working current: 0.67A
  • Central load: 2kg
  • Weight: 0.86kg
Request a Quote
Features
  • Provides motorized double-axis tilt adjustment.
  • Adjustment screw adopts M6×0.25 fine pitch thread for precision adjustment.
  • Equipped with high-quality disc spring reset mechanism, ensuring stability and strong vibration resistance.
