Positioning Stage Combination

Positioning Stage Combination

Custom integration of positioning stages

We offer over a dozen different models of positioning stage combinations, allowing customers to customize combinations according to their production or experimental needs. When assembling, it's important to consider the weight and load limits of each positioning stage, minimizing unnecessary eccentric weight.

Request a Quote
Below are the types of positioning stage combinations we have produced.

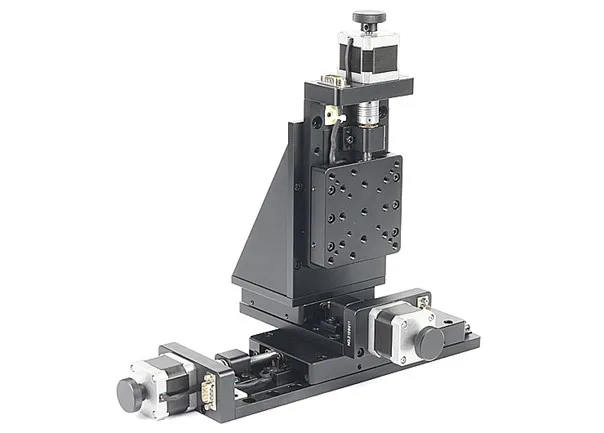

7SAA301 motorized positioning stage combination
7SAA301 motorized positioning stage combination
  • Number of dimensions: 3
  • Travel range: Tx 50mm, Ty 50mm, Tz 50mm
  • Comprised of 3 7STA1050 and 1 7MBR6 right angle plate
7SAM201 motorized positioning stage combination
7SAM201 motorized positioning stage combination
  • Number of dimensions: 2
  • Travel range: Tx 13mm, Ty 13mm
7SAM202 motorized positioning stage combination
7SAM202 motorized positioning stage combination
  • Number of dimensions: 2
  • Travel range: Tx 13mm, Ty 13mm
7SAM203 motorized positioning stage combination
7SAM203 motorized positioning stage combination
  • Number of dimensions: 2
  • Travel range: Tx 25mm, Ty 25mm
7SAM204 motorized positioning stage combination
7SAM204 motorized positioning stage combination
  • Number of dimensions: 2
  • Travel range: Tx 25mm, Ty 25mm
7SAM205 motorized positioning stage combination
7SAM205 motorized positioning stage combination
  • Number of dimensions: 2
  • Travel range: Tx 75mm, Ty 75mm
7SAM301 motorized positioning stage combination
7SAM301 motorized positioning stage combination
  • Number of dimensions: 3
  • Travel range: Tx 13mm, Ty 13mm, Tz 13mm
7SAM302 motorized positioning stage combination
7SAM302 motorized positioning stage combination
  • Number of dimensions: 3
  • Travel range: Tx 13mm, Ty 13mm, Tz 13mm
7SAM303 motorized positioning stage combination
7SAM303 motorized positioning stage combination
  • Number of dimensions: 3
  • Travel range: Tx 25mm, Ty 25mm, Tz 25mm
7SAM304 motorized positioning stage combination
7SAM304 motorized positioning stage combination
  • Number of dimensions: 3
  • Travel range: Tx 25mm, Ty 25mm, Tz 25mm
7SAM305 motorized positioning stage combination
7SAM305 motorized positioning stage combination
  • Number of dimensions: 3
  • Travel range: Tx 25mm, Ty 25mm, Tz 5mm
7SAM306 motorized positioning stage combination
7SAM306 motorized positioning stage combination
  • Number of dimensions: 3
  • Travel range: Tx 25mm, Ty 25mm, θz 360°
7SAM307 motorized positioning stage combination
7SAM307 motorized positioning stage combination
  • Number of dimensions: 3
  • Travel range: θx ±10°, θy ±15°, θz 360°
7SAM308 motorized positioning stage combination
7SAM308 motorized positioning stage combination
  • Number of dimensions: 3
  • Travel range: Tx 25mm, Ty 25mm, Tz 60mm
7SAM309 motorized positioning stage combination
7SAM309 motorized positioning stage combination
  • Number of dimensions: 3
  • Travel range: Tx 13.5mm, θx±5°, θy±5°
7SAM310 motorized positioning stage combination
7SAM310 motorized positioning stage combination
  • Number of dimensions: 3
  • Travel range: Tx 13mm, Ty 13mm, θz 360°
7SAM311 motorized positioning stage combination
7SAM311 motorized positioning stage combination
  • Number of dimensions: 3
  • Travel range: Tx 13mm, Ty 13mm, Tz 5mm
7SAM402 motorized positioning stage combination
7SAM402 motorized positioning stage combination
  • Number of dimensions: 4
  • Travel range: Tx 25mm, Ty 25mm, θx±5°, θy±5°
7SAM401 motorized positioning stage combination
7SAM401 motorized positioning stage combination
  • Number of dimensions: 4
  • Travel range: Tx 13mm, Tz 5mm, θy±5°, θz 360°
7SAM403 motorized positioning stage combination
7SAM403 motorized positioning stage combination
  • Number of dimensions: 4
  • Travel range: Tx 25mm, Ty 25mm, θx±2.5°, θz±2.5°
7SAM501 motorized positioning stage combination
7SAM501 motorized positioning stage combination
  • Number of dimensions: 5
  • Travel range: Tx 13mm, Ty 13mm, Tz 13mm θx±15°, θy±30°
7SAM502 motorized positioning stage combination
7SAM502 motorized positioning stage combination
  • Number of dimensions: 5
  • Travel range: Tx 13mm, Ty 13mm, Tz 13mm θx±5°, θz±5°
7SAM503 motorized positioning stage combination
7SAM503 motorized positioning stage combination
  • Number of dimensions: 5
  • Travel range: Tx 13mm, Ty 13mm, Tz 13mm θy±5°, θz±5°
7SAM601 motorized positioning stage combination
7SAM601 motorized positioning stage combination
  • Number of dimensions: 6
  • Travel range: Tx 25mm, Ty 25mm, Tz 5mm θx±5°, θy±5° θz 360°
7SAM602 motorized positioning stage combination
7SAM602 motorized positioning stage combination
  • Number of dimensions: 6
  • Travel range: Tx 13mm, Ty 13mm, Tz 13mm, θx±5° θy±15° θz ±5°
7SAM603 motorized positioning stage combination
7SAM603 motorized positioning stage combination
  • Number of dimensions: 6
  • Travel range: Tx 25mm, Ty 25mm, Tz 5mm θx±10°, θy±15° θz 360°
