Optical measurement systems
Optical measurement systems for solar cell testing and optoelectronics testing

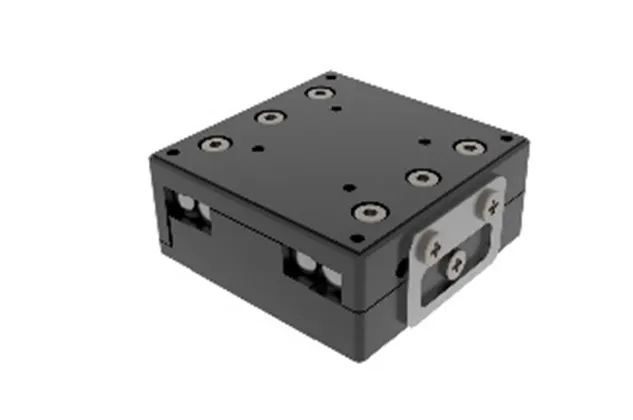

| Model | 7SPT1-0310 |
| Stroke (mm) | 10 |
| Drive unit | Piezo motor |
| Position transducer | Imported optical grating |
| Max. load (kg) | 0.3 |
| Max. speed (mm/s) | 100 |
| Mini step (nm) | 150 |
| Repeatability (nm) | ±500 |
| Basic materials | Superior aluminum alloy |
| Overall size (mm) | 35×35×15 |

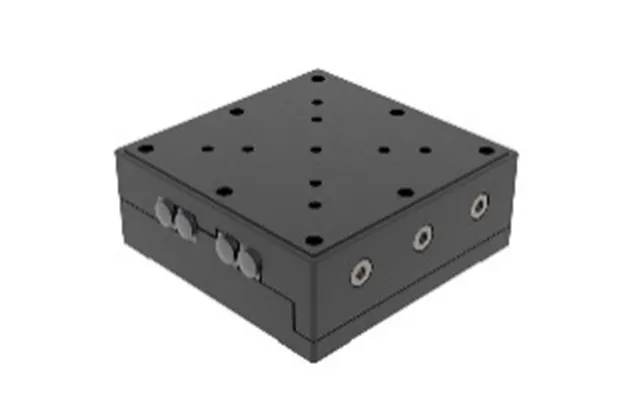

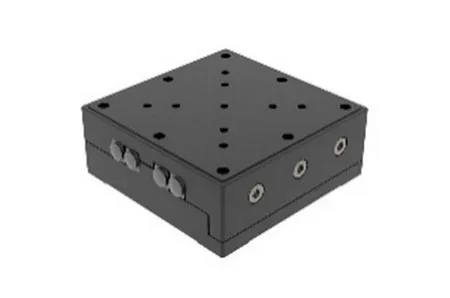

| Model | 7SPT2-0618S |
| Stroke (mm) | 18 |
| Drive unit | Piezo motor |
| Position transducer | Imported optical grating |
| Max. load (kg) | 1 |
| Max. speed (mm/s) | 100 |
| Mini step (nm) | 50 |
| Repeatability (nm) | ±200 |
| Basic materials | Superior aluminum alloy |
| Overall size (mm) | 60×60×23 |

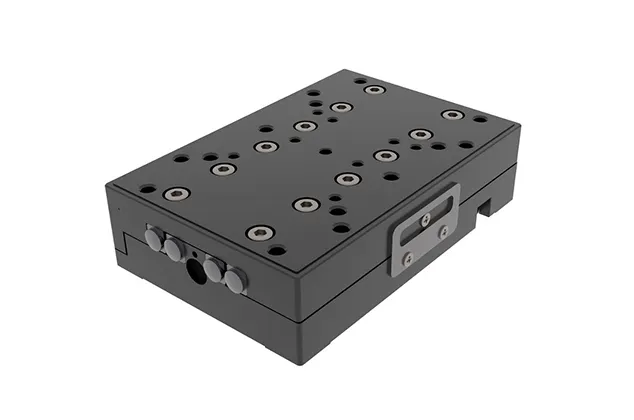

| Model | 7SPT2-0650 |
| Stroke (mm) | 50 |
| Drive unit | Piezo motor |
| Position transducer | Imported optical grating |
| Max. load (kg) | 1 |
| Max. speed (mm/s) | 100 |
| Mini step (nm) | 50 |
| Repeatability (nm) | ±200 |
| Basic materials | Superior aluminum alloy |
| Overall size (mm) | 90×60×23 |

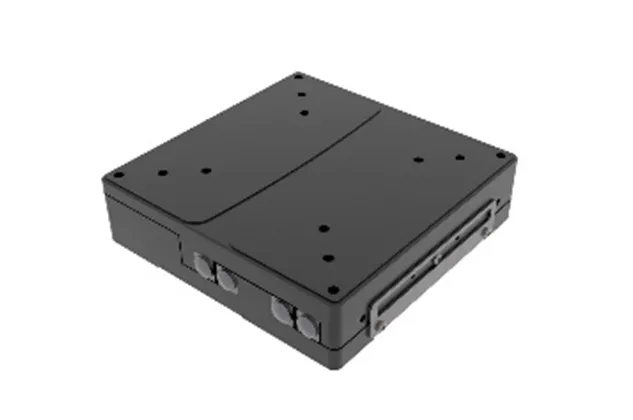

| Model | 7SPT3-1050 |
| Stroke (mm) | 50 |
| Drive unit | Piezo motor |
| Position transducer | Imported optical grating |
| Max. load (kg) | 5 |
| Max. speed (mm/s) | 100 |
| Mini step (nm) | 20 |
| Repeatability (nm) | ±200 |
| Basic materials | Superior aluminum alloy |
| Overall size (mm) | 100×100×26 |
