Optical measurement systems
Optical measurement systems for solar cell testing and optoelectronics testing

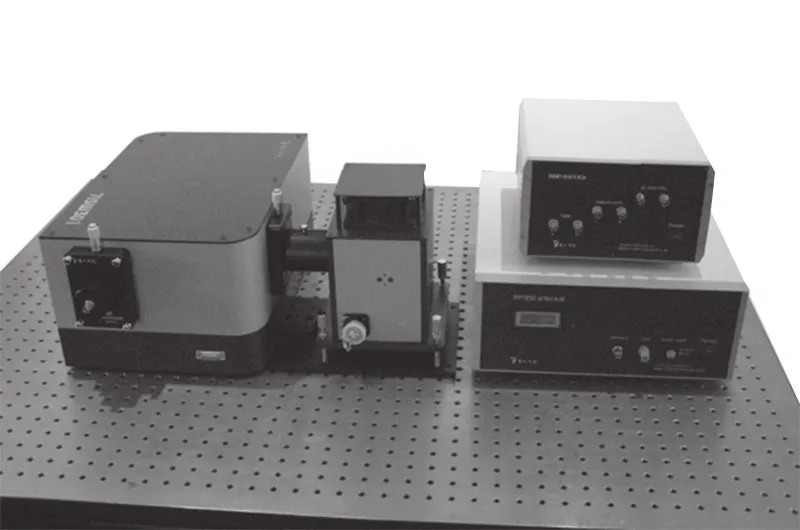

Our emission measurement system is versatile, capable of measuring the performance of emission spectra from various light sources including LEDs, LCDs, and other luminous bodies.
| Spectral range | Selectable within 200~2500nm according to actual needs |
| Wavelength accuracy | ±0.2nm |
| Spectral resolution | ±0.1nm |
| Spectral bandwidth | Adjustable from 0.2~10nm |
The scanning type features a modular design for flexible structure and easy upgrades. Enhanced with photomultiplier tubes and high-sensitivity indium gallium arsenide detectors, coupled with optical choppers and lock-in amplifiers, it effectively improves system signal-to-noise ratio.

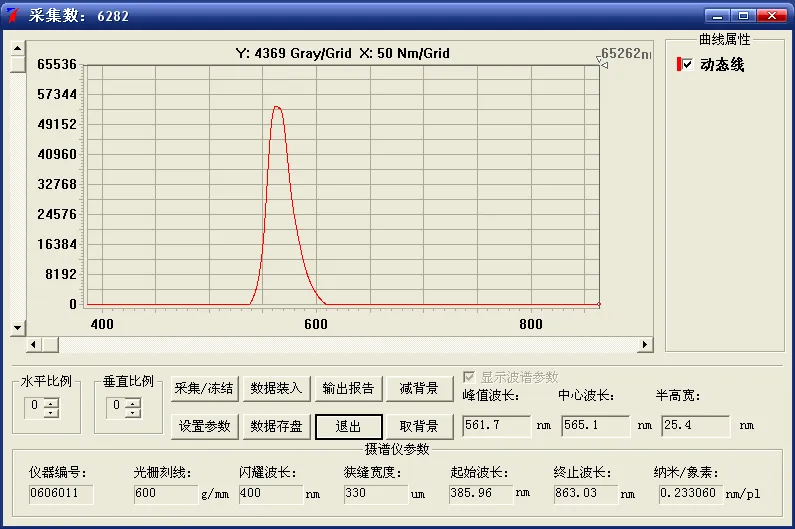

The mini spectrometer type can calculate parameters such as peak wavelength, center wavelength, and full width at half maximum (FWHM), making it ideal for testing LEDs and laser diodes.
