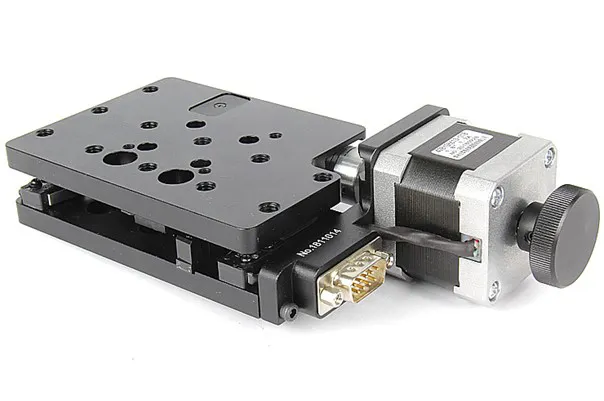

7STA1325 Motorized Translation Stages

Request a Quote

Features

A stepper motor and a DB9 connector ensure seamless compatibility with 7SC series motion controllers for automated positioning.
The precision-ground lead screw provides high-resolution movement and smooth linear positioning, making it ideal for precise applications.
With an ultra-thin structure and a super-thin linear guide, this stage enables high-precision motion in compact spaces.
A high-quality elastic coupling connects the motor to the screw drive, reducing backlash and ensuring synchronized, low-noise operation.
Manual adjustments are easily made using the built-in handwheel, offering additional control when automation is not required.

Specifications

Model	7STA1325
Travel（mm）	25
Screw lead (mm)	0.5
Resolution (at 8 microsteps) (mm）	0.0003125
Maximum speed (at 2 microsteps)（mm/s）	10
Accuracy of repeat positioning	0.01
Backlash (mm)	0.02
Motor type	42 stepper motor (1.8°)
Maximum static torque（N·m）	0.4
Rated working current（A）	1.7
Central load（kg）	20
Weight（kg）	0.8
