Tilt Platform

Our company offers single-axis and dual-axis tilt platforms. The tilt platform features a disc spring or tension spring reset structure, ensuring stability and strong anti-vibration capabilities. Additionally, it includes standard mounting holes for easy integration with other positioning stages to form multidimensional adjustment platforms.

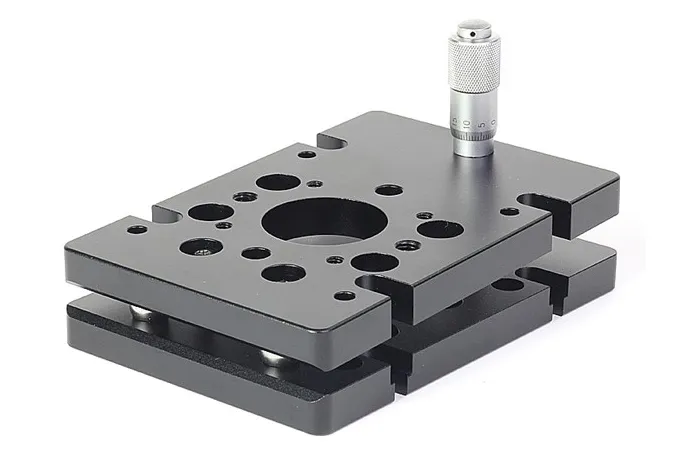

7SIM0103 tilt platform

• Table size: 80mmx120mm
• Adjustment range: ±3°
• Minimum graduation: 0.01mm
• Load: 5kg
• Weight: 0.5kg

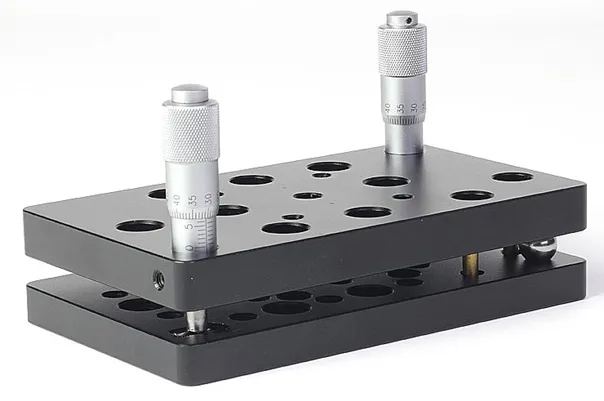

7SIM0205 tilt platform

• Table size: 75mmx125mm
• Adjustment range: ±5°
• Minimum graduation: 0.01mm
• Load: 6kg
• Weight: 0.5kg

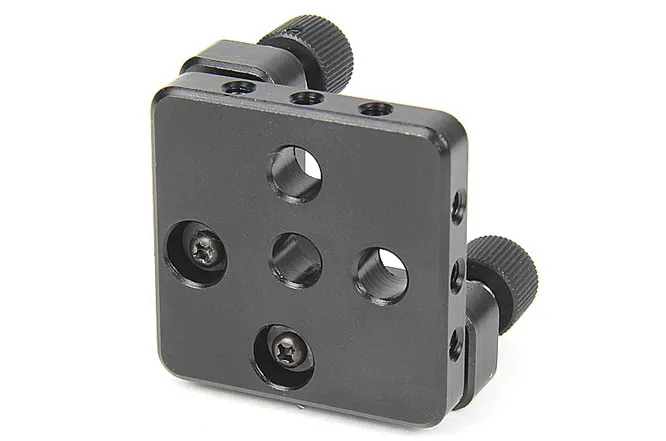

7SIM0305 tilt platform

• Adjustment range: ±5°
• Load: 2kg
• Weight: 0.1kg

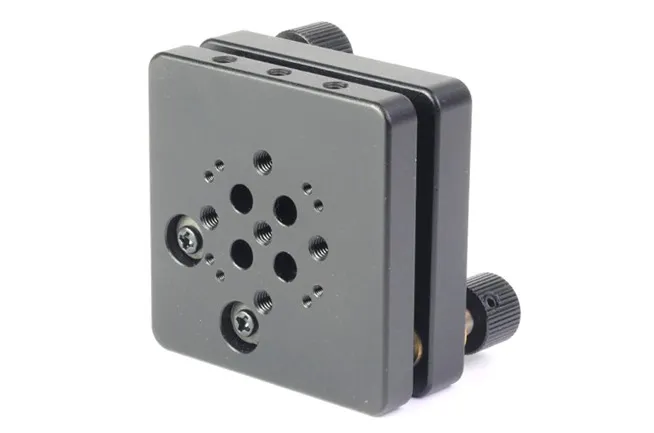

7SIM0405 tilt platform

• Adjustment range: ±5°
• Load: 2kg
• Weight: 0.1kg

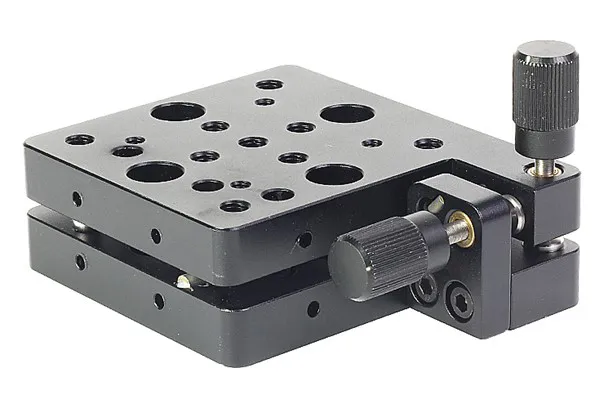

7SIM0503 tilt platform

• Pitching angle: +2.5°
• Rotary angle: +2.5°
• Load: 6kg
• Weight: 0.3kg

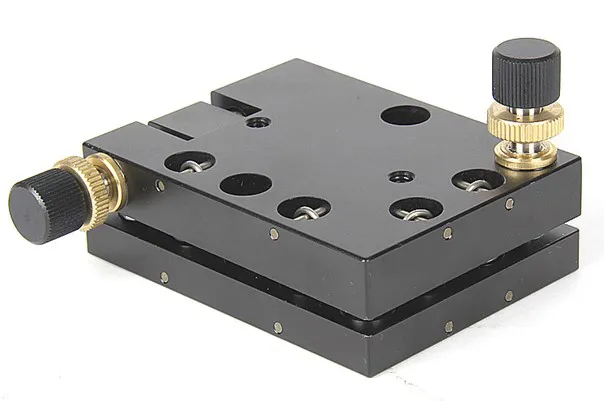

7SIM0602 tilt platform

• Pitching angle: +2°
• Rotary angle: +2°
• Load: 2kg
• Weight: 0.3kg
