7MML516 Four-Dimensional Mirror Mount
Request a Quote
7MML516

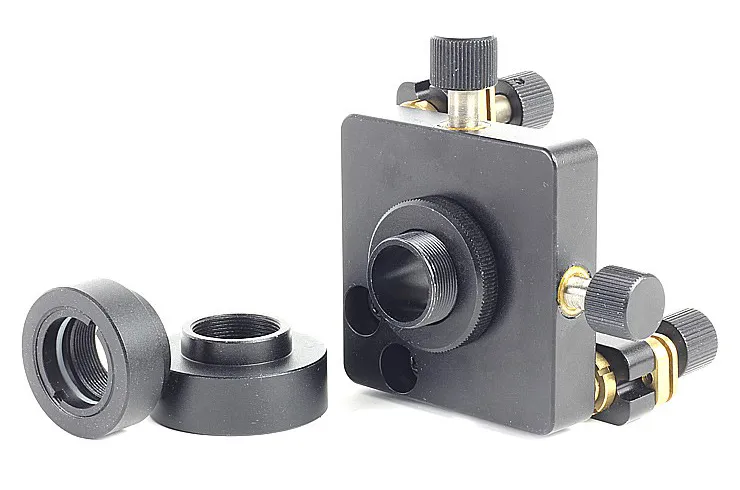

Four-Dimensional Mirror Mount

Features
  • Supports two-dimensional translation and two-dimensional inclination adjustment for precise positioning.
  • Equipped with an M6 x 0.25 fine-thread adjustment featuring a special copper nut that locks axially, preventing loosening due to vibration.
  • Includes a Belleville spring for reset, allowing adjustable force settings from zero to full rigidity.
  • Designed with a pressing ring for secure lens clamping.
  • Allows flexible clamping diameter adjustments using 7MML516-1F or 7MML516-2F adapters.
Specifications
Model 7MML516
Translation travel (mm) ±2
Inclination range (°) ±3
Clamping diameter (mm) 16
Weight (g) 214g

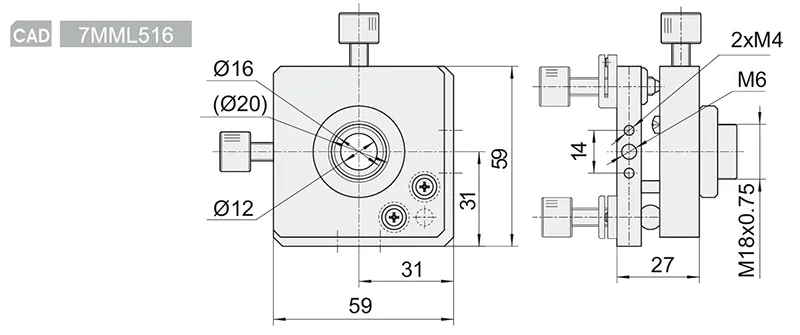

7MML516 Four-Dimensional Mirror Mount
Model Options
Model Clamping diameter (mm)
7MML516-1F 20
7MML516-2F 25.4
