Optical measurement systems
Optical measurement systems for solar cell testing and optoelectronics testing

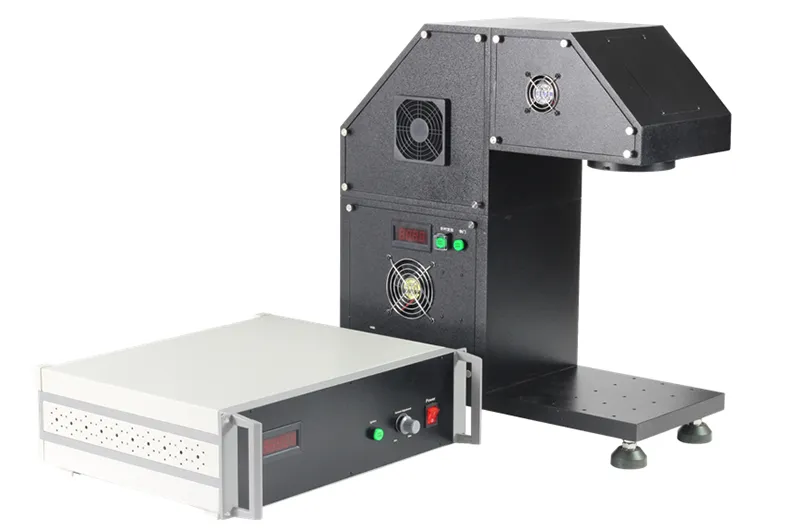

Solar simulators replicate standard sunlight for various applications, commonly used in photovoltaic testing. Paired with data collection and processing equipment, they measure solar cell electrical parameters, providing insights into cell performance. Additionally, they serve as light sources for a range of instruments in physics, biochemistry, medicine, environmental studies, and other laboratory experiments.
| Model | | | | |
| Spot size | 2×2(50×50) | 4×4(100×100) | 6×6(150×150) | 8×8(200×200) |
| Grade of spectrum matched | A grade (0.75-1.25) | |||
| Grade of spatial non-uniformity | A grade (better than ±2%) | |||
| Grade of temporal stability | A grade (better than ±2%) | |||
| Working distance (mm) | 120 | 330 | 350 | |
| Power of lamps (W) | 350 | 1000 | 1000 | 1500 |
| Collimation angle | ＜ ±5° | ＜ ±5° | ＜ ±3° | ＜ ±3° |
| Typical values of the power output | 100mW/cm2 (1 solar constant) ±20％adjustable | |||
| Irradiance on surface | 0.7-1.2 Sun (solar constant) | |||
| Degree of linearity | 0.01％ | |||
