Precision Five Dimensional Adjustment Platform
Request a Quote
7-PMA400

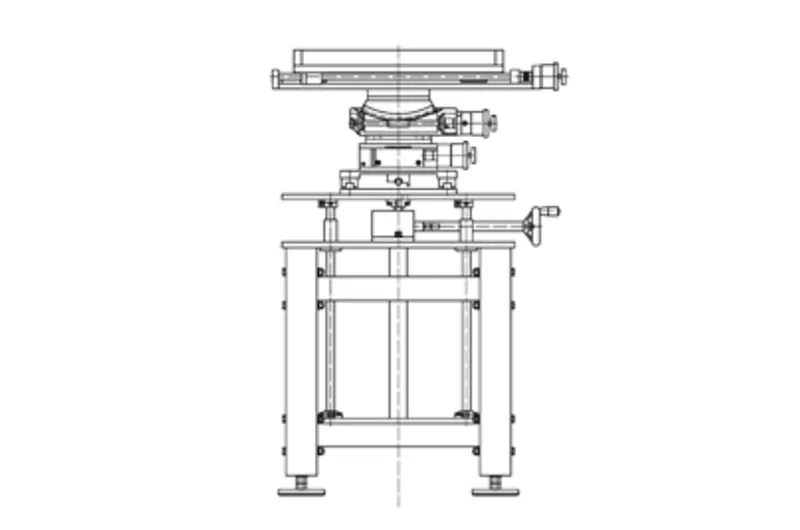

Precision Five Dimensional Adjustment Platform

Integrated multi-axis positioning system
  • Size of load area: 540mm×540mm
  • Minimum height: 1000mm
  • X axis translation travel: ±30mm
  • Y axis translation travel: ±200mm
  • Z shaft lifting stroke: 400mm
  • Z axis rotation adjustment range: 360°
  • Z axis tilt adjustment range: ±10°
  • Loading weight: 100kg
Features
  • It is capable of two-dimensional translation and one-dimensional adjustments for lifting, rotation, and pitching.
  • Vertical lifting

    Utilizes linear bearing guide rails and imported screw lifts for vertical lifting, providing high precision, stability, and a large lifting range.

  • The rotation and pitch mechanism utilize worm and wormwheel design, allowing for both coarse and fine adjustments. This setup transforms the reducer into a versatile handwheel, enabling smooth speed control and high-resolution adjustments down to 1 micron.
  • Two-dimensional horizontal translation

    Employs precision linear slide rails and ball screw drives for horizontal translation. Utilizes the same reducer with coarse and fine adjustment for smooth speed feed and high resolution (1 micron).

  • Rigid platform bracket

    Equipped with a sturdy and stable bracket design, providing a solid foundation for the platform, ensuring stability and reliability during operation.
