7STA08B Series Precision Translation Stages

Request a Quote

Features

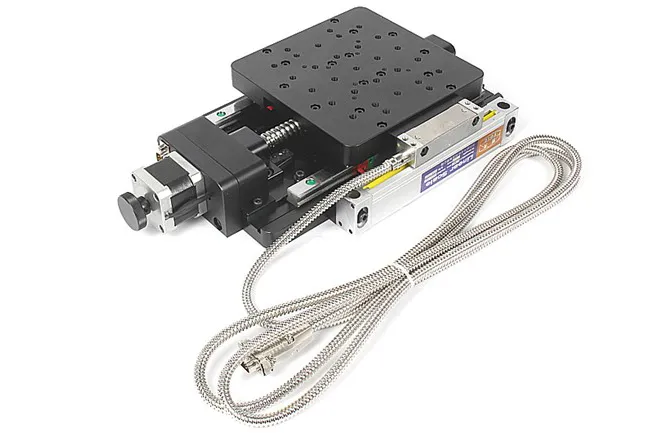

Built upon the 7STA03B series, this model integrates a grating ruler for closed-loop automatic control, enabling micron-level positioning accuracy when used with a motion controller.
The high-precision ball screw drive system ensures smooth linear motion, excellent repeatability, and long-term stability.
A three-bearing mounting structure secures the screw rod, minimizing axial displacement and ensuring reliable performance in high-speed reciprocating applications.

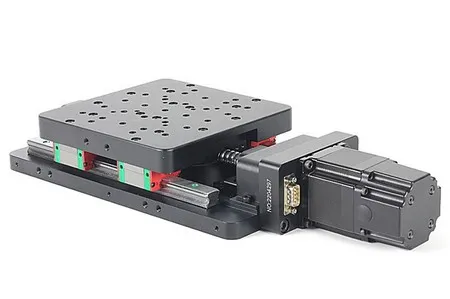

The square-type linear guide, fully integrated with the base plate, provides high rigidity and load capacity, making it suitable for single-axis heavy loads or multi-axis configurations.

Specifications

Model	7STA0850B	7STA08100B	7STA08150B	7STA08200B	7STA08300B
Travel（mm）	50	100	150	200	300
Table size（mm）	160×160
Screw lead (mm)	5
Resolution (at 8 microsteps) (mm）	0.0015625			0.003125
Repeatability（mm）	±0.001
Accuracy（mm）	±0.003
Maximum speed (at 2 microsteps)（mm/s）	20			40
Motor type	42 stepper motor (0.9°)			42 stepper motor (1.8°)
Maximum static torque（N·m）	0.4
Rated working current（A）	1.7
Central load（kg）	30
Weight（kg）	5.2	5.7	6.2	6.7	7.7
