Optical measurement systems
Optical measurement systems for solar cell testing and optoelectronics testing

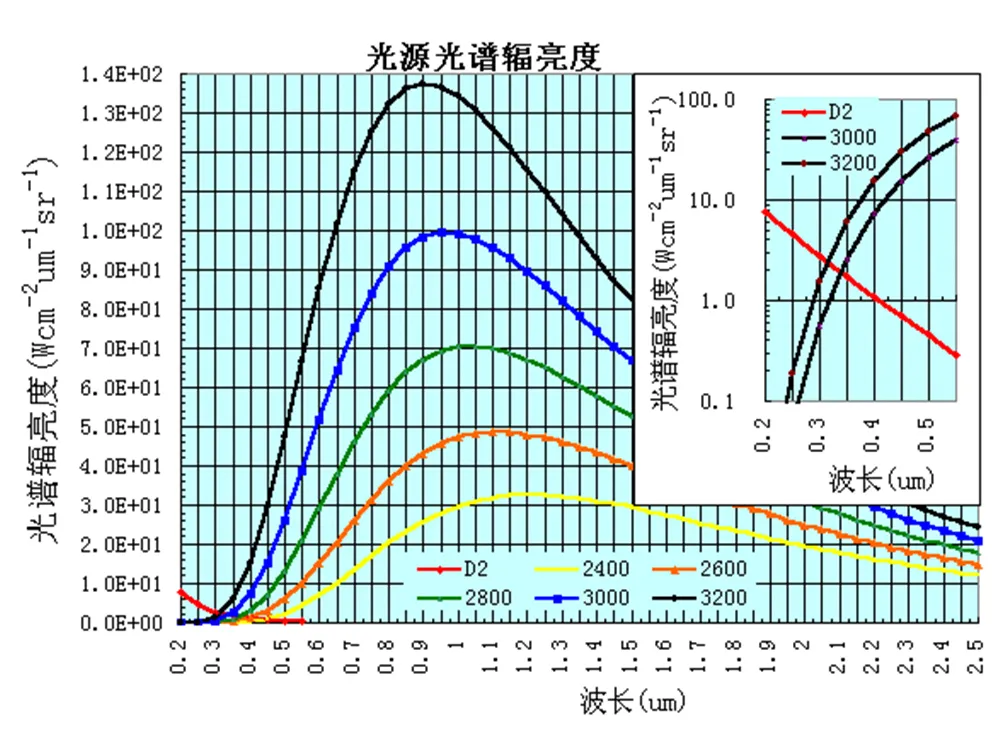

Our deuterium lamp house is designed for ultraviolet (UV) and vacuum ultraviolet (VUV) applications, reaching as low as 195nm. Notably, its brightness increases with shorter wavelengths, surpassing standard halogen tungsten lamps below 360nm. Featuring our long-life deuterium lamp, the 7ILD30 chamber offers exceptional stability. Users can easily replace the lamp themselves. For optimal performance, pair it with our 7IPD30 power supply.
This versatile light source serves various purposes, from independent UV illumination to excitation for fluorescence sources. It seamlessly integrates with monochromators, spectrometers, sample chambers, and filter wheels, enabling diverse application systems.
| Spectral range | 200－400nm |
| Bulb life | 2000h |
| Cooling | Fan |
| Focal lens | Fused UV silica lens |
| Minimal beam diameter | Ø3mm |
| Parallel beam diameter | Ø38mm |
| Weight | 3.6kg |
| Model | | |
| Supply voltage | AC220V±10%/50Hz | |
| Lamp power | 30W | |
| Output current drift | ±0.05%/h | ±0.1%/h |
| Current stability | 0.6 p-p @ 300 mA | 5×10–4 p-p @ 300 mA |
| Weight | 2.4kg | |
