Motorized Vertical Translation Stage
7SVA5

Motorized Precision Vertical Translation Stage

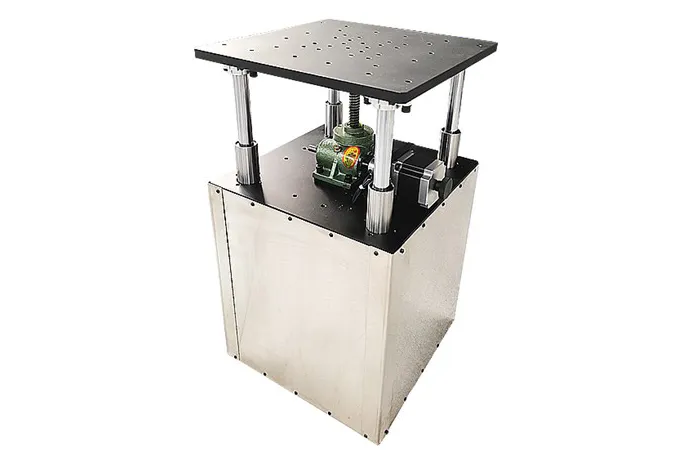

7SVA5 Motorized Precision Vertical Translation Stage
Request a Quote
Features
  • Equipped with a stepper motor and a standard DB9 plug, compatible with 7SC series motion controllers for automated and precise control.
  • The driving force is centered on the horizontal platform, ensuring balanced motion without unsteady loading.
  • Features a precision worm and worm gear reducer, offering high load capacity and fast lifting capabilities.
  • Built with a trapezoidal screw rod that includes a self-locking function for secure positioning.
  • Includes a linear bearing guide rail for smooth and stable movement.
  • Comes with a zero and limit switch for easy, accurate positioning and enhanced protection during operation.
Specifications
Model 7SVA550 7SVA5100 7SVA5150 7SVA5200 7SVA5300 7SVA5400
Table size 300mm×300mm 500mm×500mm
Travel 50mm 100mm 150mm 200mm 300mm 300mm
Height range A 305-355mm 355-455mm 405-555mm 465-665mm 608-908mm 708-1108mm
Lead for screw rod 4mm 6mm
Transmission ratio 11:1 6.1
Standard motor 57 stepper motor (1.8°) 85 stepper motor (1.8°)
Resolution (8 subdivision) 0.284μm 0.52μm
Maximum speed (2 subdivision) 2.9mm/s 8mm/s
Load 100kg 200kg
Weight 25.9kg 26.6kg 27.3kg 28kg 124kg 127kg
