Motorized Vertical Translation Stage
7SVA160

Motorized Precision Vertical Translation Stage

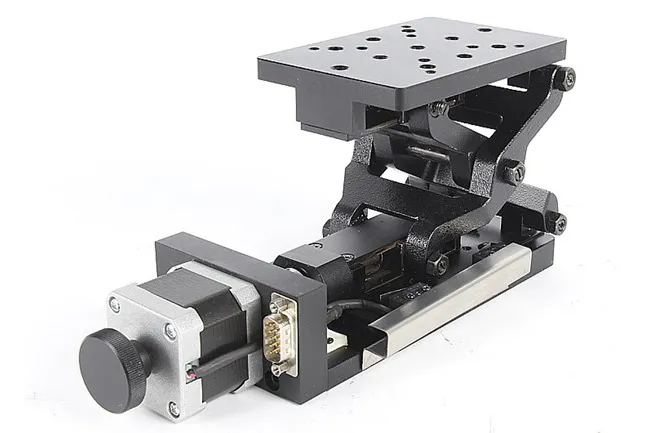

7SVA160 Motorized Precision Vertical Translation Stage
Request a Quote
Features
  • Equipped with a stepper motor and a standard SB9 plug, compatible with 7SC series motion controllers for precise automatic control.
  • Designed for large travel distances, allowing vertical translation with heavy load capacity.
  • Features a scissor support structure driven by a precision-ground screw rod, along with dual guide rails and five-axis over-location, ensuring smooth, stable, and highly accurate movement.
  • Includes multiple mounting holes on both upper and lower surfaces, providing flexible installation options.
Specifications
Model 7SVA160
Travel 50mm
Table size 80mm×120mm
Repeatability 0.02mm
Standard motor 42 stepper motor (0.9°)
Maximum static torque 0.4N ·m
Rated working current 1.7A
Maximum speed (2 subdivision) 5mm/s
Central load 50kg
Weight 1.3kg
