Motorized Vertical Translation Stage
7SVA4

Motorized Precision Vertical Translation Stage

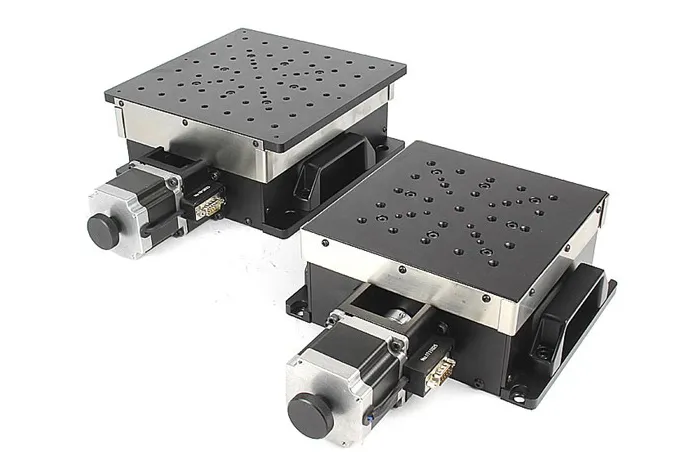

7SVA4 Motorized Precision Vertical Translation Stage
Request a Quote
Features
  • Equipped with a standard stepper motor and DB9 plug, compatible with 7SC series motion controllers for precise automatic control.
  • Driven by a precision screw rod, providing high-resolution movement and accurate positioning.
  • Features a cross-roller cylinder guide rail for smooth motion, excellent linearity, and strong load capacity.
  • Designed with a wedge-type vertical translation, ensuring a lower overall height and stable operation.
  • Utilizes a precision linear slide block guide rail for accurate positioning and enhanced stability during vertical movement.
Specifications
Model 7SVA412 7SVA425
Travel 12mm 25mm
Lead for screw rod 1.5mm
Transmission ratio 2:1
Resolution (8 subdivision) 0.0005mm
Table size 160mm×160mm 200mm×200mm
Repeatability 0.003mm
Standard motor 57 stepper motor (1.8°)
Maximum static torque 1.2N-m
Rated working current 2.8A
Maximum speed (2 subdivision) 10mm/s
Central load 40kg 50kg
Weight 5kg 7.5kg
