Motorized Biaxial Translation Stage

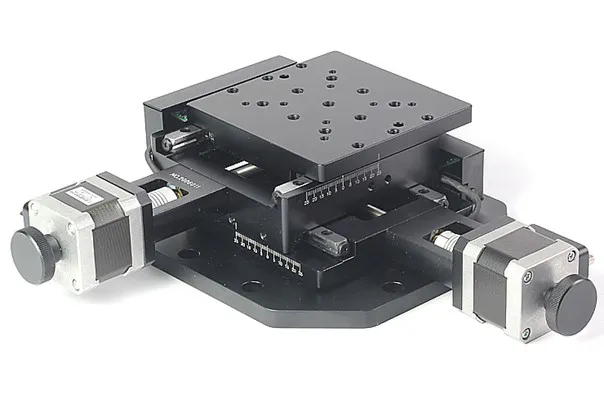

7SWA04 Motorized Biaxial Translation Stage
Request a Quote
Features
  • Equipped with a stepper motor and a standard DB9 plug, compatible with 7SC series motion controllers for precise automatic control.
  • Compact design driven by the center of the screw rod, optimizing space and ensuring smooth operation.
  • Uses a precision-ground screw rod for high-resolution movement and accurate positioning.
  • Built with a cross roller guide for smooth sliding, high precision, and strong load capacity.
  • Features a high-quality elastic coupling that links the motor and ball screw, keeping movements synchronized and reducing noise.
  • Includes a manual hand wheel for easy adjustments when needed.
Specifications
Model 7SWA0450
Travel 50mm×50mm
Lead of screw rod 0.75mm
Resolution 0.00046875mm
Standard motor 42 stepper motor (1.8°)
Repeatability 0.003mm
Linearity 0.02mm
Parallelism 0.02mm
Maximum speed (2 subdivision) 10mm/s
Load 30kg
Weight 28kg
