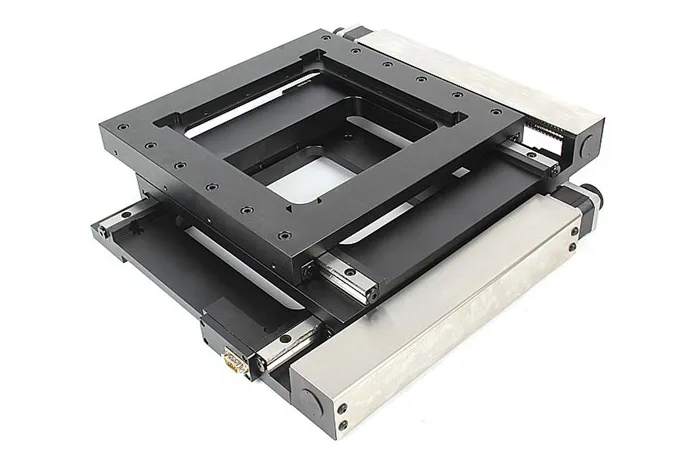

Motorized Biaxial Translation Stage

7SWA01

Request a Quote

Features

Equipped with a stepper motor and a DB9 or aviation plug, easily connecting with 7SC series motion controllers for precise movement.
Compact design that saves space while providing high accuracy and stable motion.
Powered by a high-quality ball screw rod for smooth and reliable movement, supporting heavy loads with good repeatability.
Built with a cross-roller guide that ensures smooth sliding, high stability, and strong load capacity.
Features an elastic coupling that links the motor and ball screw, keeping movements synchronized, quiet, and smooth.

Specifications

Model	7SWA01100/7SWA01100A	7SWA01200/7SWA01200A
Travel	100mm×100mm	200mm×300mm
Minimum size for light through	138mm×138mm	222mm×272mm
Lead for screw rod	4mm
Resolution (8 subdivision)	0.00125mm	0.0025mm
Repeatability	0.005mm
Standard motor	42 stepper motor (0.9°)	42 stepper motor (1.8°)
Maximum static torque	0.4N·m
Rated working current	1.7A
Maximum load	20kg
Weight	13kg	22.5kg
