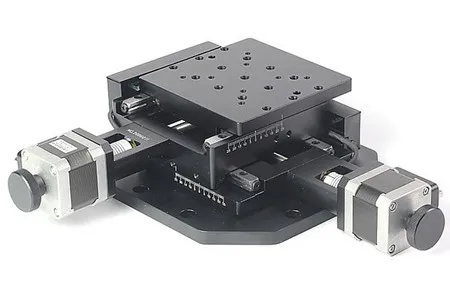

Motorized Biaxial Translation Stage

7SWA03 Motorized Biaxial Translation Stage
Request a Quote
Features
  • Equipped with a stepper motor and a standard DB9 plug, compatible with 7SC series motion controllers for precise automatic control.
  • Compact design driven by the side of the screw rod, saving space and ensuring efficient operation.
  • Uses a precision-ground screw rod for high-resolution movement and smooth positioning.
  • Built with a cross-roller guide for stable, precise movement and strong load capacity.
  • Features a high-quality elastic coupling that links the motor and ball screw, ensuring synchronized movement with low noise.
Specifications
Model 7SWA0330 7SWA0350
Travel 30mm×30mm 50mm×50mm
Lead for screw rod 1mm
Resolution (8 subdivision) 0.000625mm
Repeatability 0.003mm
Linearity 0.02mm
Parallelism 0.02mm
Maximum speed (2 subdivision) 10mm/s
Standard motor 42 stepper motor (1.8°)
Table size A 110mm 130mm
M6 screw distance B -- 100
C 199.5 219.5
D 188-218 198-248
E 277 297
Number of M6 screw 9 15
Load 20kg
