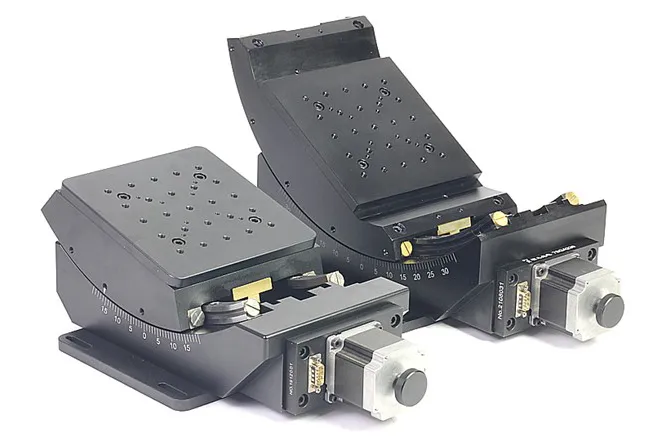

| Model | 7SGA215 | 7SGA230 |
| Adjustment range | ±15° | ±30° |
| Table size | 160mm×160mm | |
| Height of rotary axis | 139mm | |
| Transmission ratio | 400:1 | |
| Resolution (8 subdivision) | 0.0005625° | |
| Repeatability | 0.004° | |
| Standard motor | 57 stepper motor (1.8°) | |
| Maximum speed (2 subdivision) | 10°/s | |
| Rated working current | 3A | |
| Maximum static torque | 1.5N-m | |
| Horizontal load | 30kg | |
| Weight | 11.3kg | 14kg |
